Epoxy-Flooring-Systems

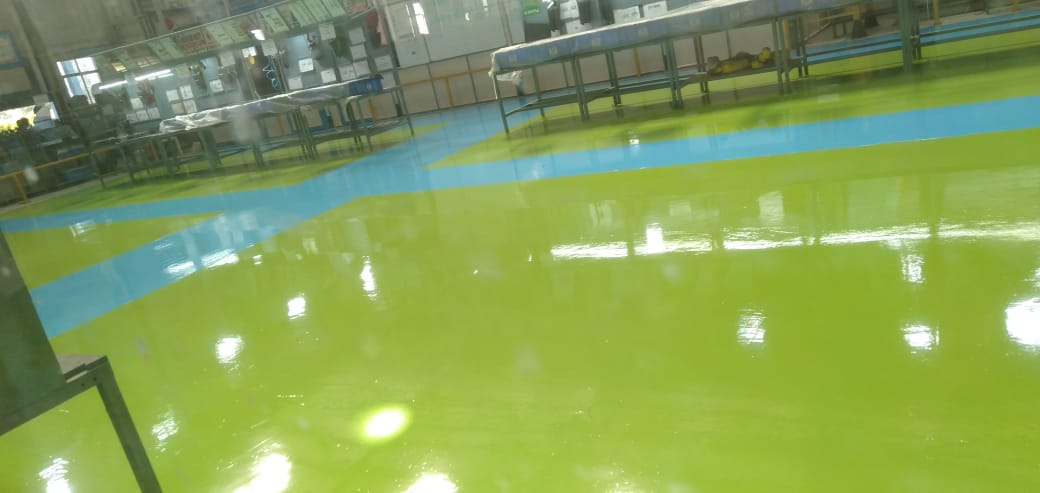

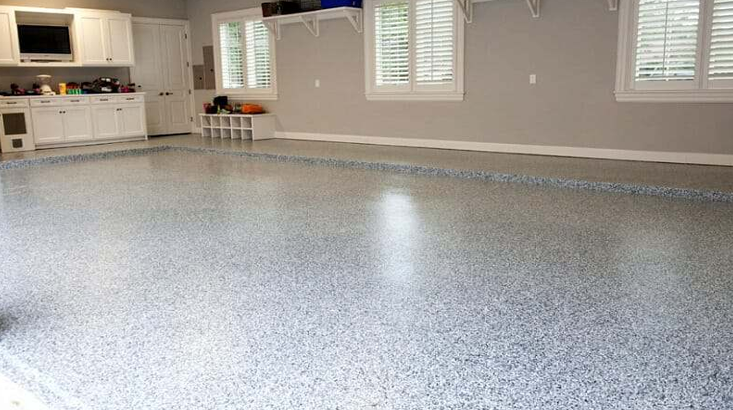

Epoxy Flooring


We offer you highly-standard, clan, aesthetically pleasing, bright, beautiful and long-lasting epoxy flooring, which is suitable for diverse industry be it Offices, real state, sports, gym, clubs, restaurants, hotels, hospitals, therapy rooms, private clinics, and many others.

OUR SERVICES

Floorings
ESD Floorings

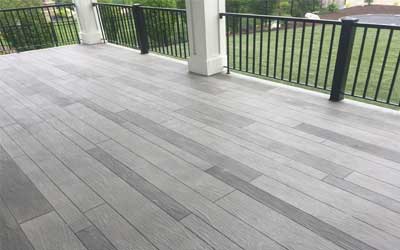

Deck coatings

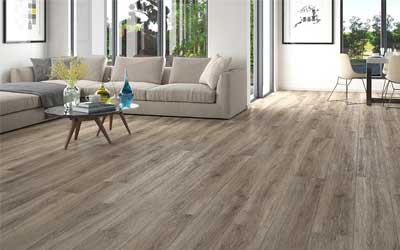

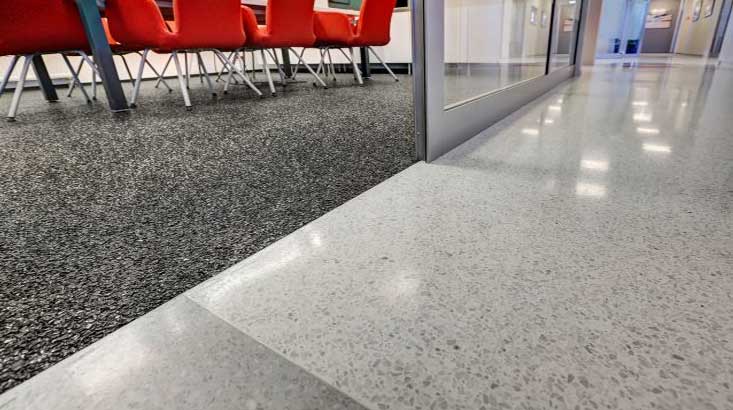

Decorative Floorings

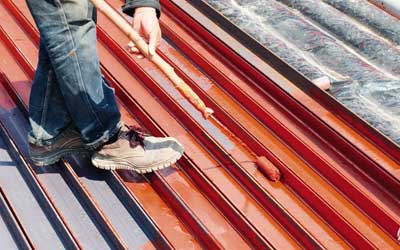

Protective Coatings

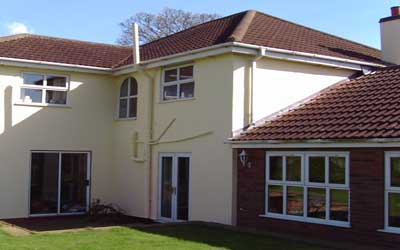

Wall-Coatings
Spray applied PU & Polyurea

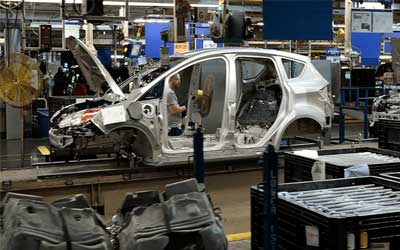

O E M

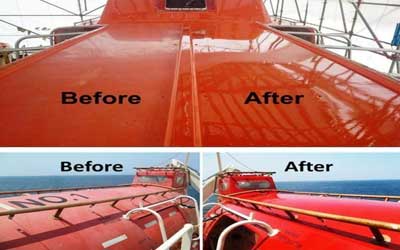

Clear coatings

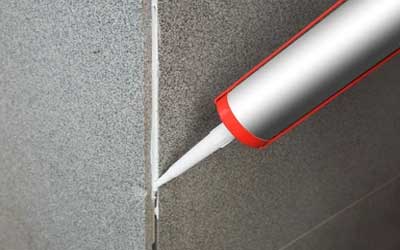

Sealants
Water proofings
Grouts and adhesives
Expansion Joint Service

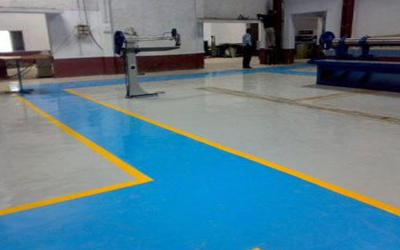

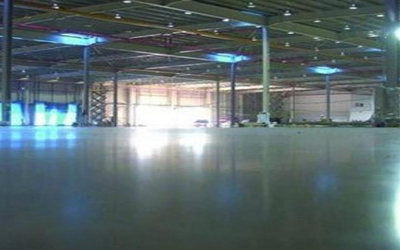

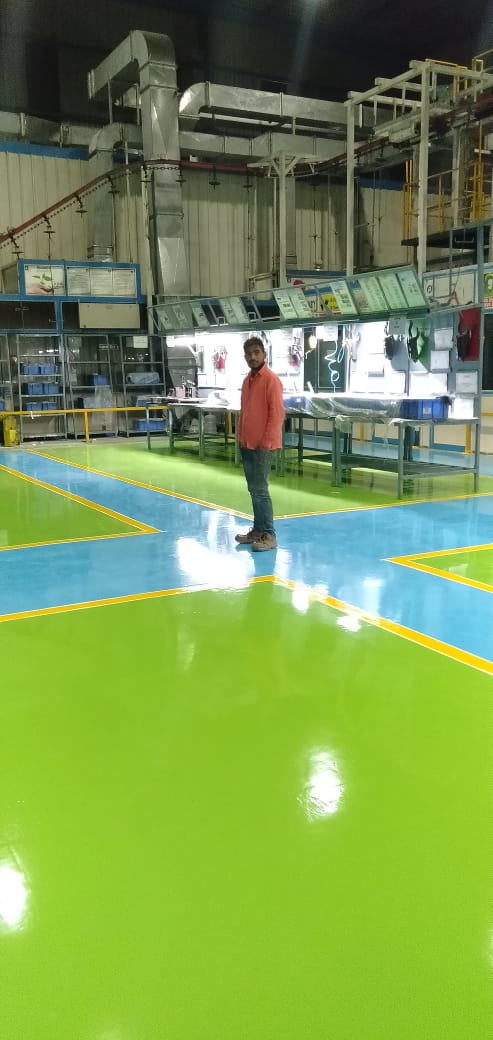

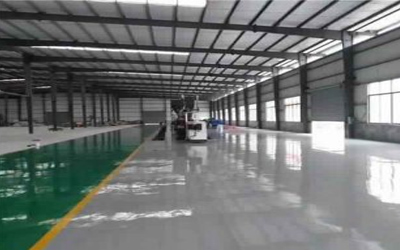

Industrial Epoxy Flooring
Roof Thermal Insulation

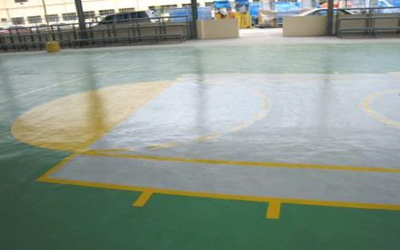

Sports Epoxy Flooring
Abrasion Resistant Epoxy Flooring
Anti Static Epoxy Flooring Services

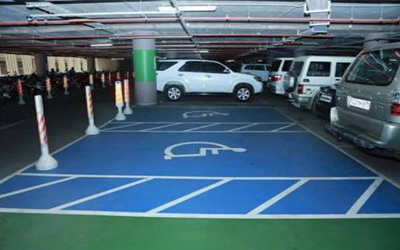

Car Parking Flooring Service

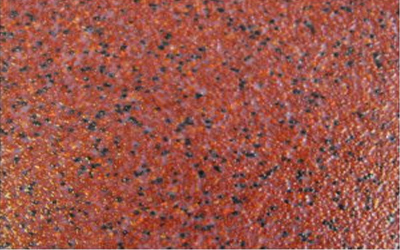

Coloured Epoxy Screed Service

Epoxy flooring solutions are ideal for providing a sleek and stunning aesthetic that adds style to any business. Whether you are looking to revamp the flooring in an office, warehouse, storage area or retail environment, this versatile option can be specified to suit the space.

Epoxy resin floors can be beneficial to several market sectors, including institutional buildings, recreational complexes, storage and logistic areas, wet and dry processing areas, retail stores, restaurants, schools and many more.

    Concrete base requirements

  • 28 days curing minimum required.
  • Compressive strength : 20 N/mm2.
  • Residual moisture < 5%
  • An impermeable membrane between PCC & RCC
  • The surface should be even and undulations are in the range of  2mm in length of 4 meters.

Hydro static moisture

Hydrostatic pressure is caused by moisture being present underneath the concrete slab, i.e. in the subsoil. As moisture rises, it dissolves salts in the concrete becomes alkaline, with brownish look. The vapour pressure is higher than the adhesive strength of the polymer system and thus the vapour forces its way to the top, thus causing blisters. The results from hydrostatic pressure do not constitute product failure.

Surface Preparation

Proper surface preparation shall include the following :

  • Inspection of the concrete substrate.
  • Removal and replacement of non-durable concrete (laitance).
  • Creation of surface profile.
  • Repair of surface irregularities.

Surface profile

Creation of surface profile is achieved by employing various surface preparation equipments such as shot blasting equipments, grinders, scarifiers, scabblers, high pressure water jetting etc. The concrete surface profile (CSP) is the measure of the average distance from the peaks of the surface to the valleys and is expressed as a concrete surface profile number (CSP 1-9) as per ICRI technical guideline No: 310.2 (formerly 03732). CSP 6,7,8 or 9 is needed for higher thickness floor coatings and CSP 3, 4 or 5 is needed for low thickness floor coatings.

Scope of work

Surface preparation shall be done by abrading the surface using machines having diamond cutting grinders. This shall create surface profile of 100 microns which shall provide mechanical key for adhesion. Subsequently the surface shall be made dust-free. Any loose floor will be removed and repair at extra charges with Epoxy repair mortar.

Purpose of Work

To provide a monolithic, seamless floor topping of Epoxy Self leveling as in standard colour shade.

System as specified

Providing and application of 2mm / 3mm self-leveling epoxy floor on new industrial concrete floor.

Why choose Clean Coats?

  • Multi polymer options
  • Wide applicator networks, closer to your facilities
  • An ISO 9001 certified company since 1976
  • Over 90% presence in automobile and engineering industries
  • Sophisticated surface preparation equipments
  • Over 3 decades experience in floor coatings

Water, electricity, storage facility, lighting, electrical point near to the working place etc., are to be provided at site.

    We need:

  • C (clean, free from oil/water contamination), dry & solid surface.
  • Storage space for material and tools-n-tackles with lock-n-key arrangement
  • Free water and electric supply at site
  • Permission to work in all shifts as per requirement

Top Coat : Color code should be mentioned in the order.

Warranty : One year Corporate Warranty as per the standard terms from the date of Completion of Job.

After Sales Service & Support: Our authorized dealer cum applicators are locally available for after sales support and services,

OTHER IMPORTANT POINTS : VSAM will provide Quality Assurance Certificates , MSDS for the products supplied. Applicator will arrange moisture meter and will check the floor moisture before start of work and when required at site.

Delivery of material:

Material will be deliver with In 10 day after receiving PO , advance and proper documents

Work completion :

DO’S AND DON'T’S ON EPU, FLOOR TOPPING FOR WARRANTY

  • Use recommended material only for floor painting.
  • Floor should be cleaned with dilute standard industrial detergent.
  • Mop the floor using rubber or nylon broom repeatedly in a day with clean water after sweeping the dust
  • Do not allow water to stagnate on the floor.
  • Any Bubble come out will be under warranty.
  • Clean and wipe the floor with dry cloth and allow the floor to dry.
  • Do not spill acid or any alkaline material on the floor.
  • Avoid oil spillage on the floor for ensuring safety.
  • Do not hammer anything by placing it on the floor.
  • Do not drag heavy machinery / vehicles on the stand , on the floor.
  • Do not use trolleys with steel / iron castors on the floor.
  • Do not drag work benches on the floor.
  • Use rubber mats below the work bench legs.
  • Do not keep dismantled components on the floor.
  • Do not heat any substance on the floor.
  • Avoid sand spillage as this may act as an abrasive material.
  • No point load should be applied on the floor.
  • Do not use shoes/ chapels with metal spikes / plates / nails in the sole.
  • In case of chip off or abrasion contact the respective dealer / supplier at the early stage.

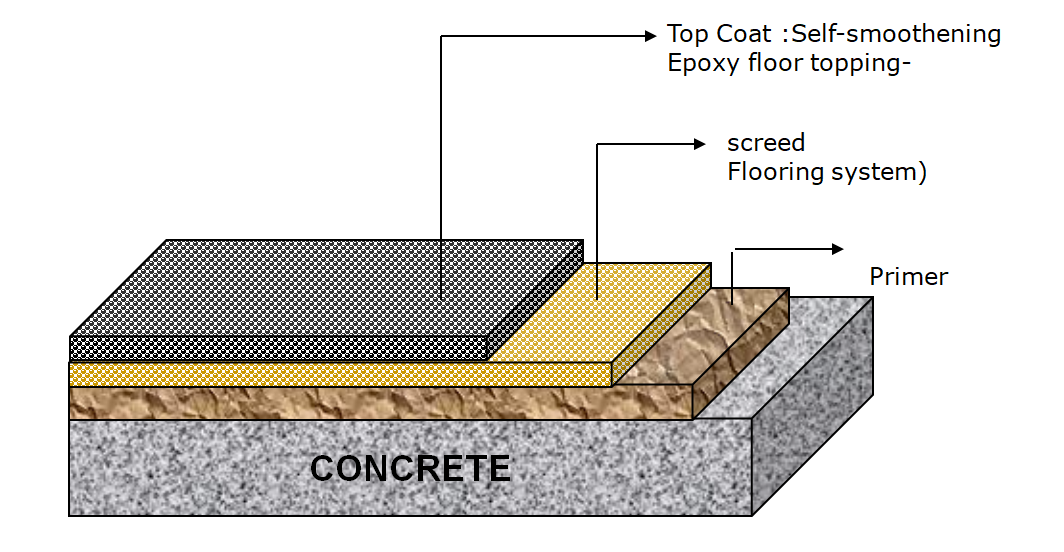

Floor Coatings with Epoxy top

System Details:
3mm System: Primer (100 microns)+ screed (2000microns) + Epoxy topcoat (1000microns)
